2026 Market Trends for Surge Protection Devices for Elevators

The global market for Surge Protection Devices (SPDs) specifically designed for elevators is poised for significant transformation by 2026, driven by advancements in building technology, heightened safety regulations, and the growing integration of smart infrastructure. As urbanization accelerates and high-rise buildings become more prevalent, the demand for reliable and intelligent elevator systems—along with their supporting electrical protection—is expected to rise sharply. This analysis explores key market trends shaping the future of SPDs for elevators through the year 2026.

Increasing Adoption of Smart and Connected Elevators

One of the most influential trends driving the surge protection market is the shift toward smart and Internet of Things (IoT)-enabled elevators. Modern elevators are now equipped with sensors, real-time monitoring systems, and data communication platforms to enhance performance, safety, and energy efficiency. However, this increased connectivity exposes elevator control systems to greater risks from voltage surges and electromagnetic interference. As a result, integrators and building managers are prioritizing SPDs that offer robust protection for sensitive electronics. By 2026, it is expected that over 60% of newly installed elevators in developed markets will include advanced SPDs as part of their standard safety and control infrastructure.

Stringent Building and Safety Regulations

Regulatory standards are evolving to address electrical safety in vertical transportation systems. International codes such as IEC 62305 (Protection against lightning) and IEC 61643 (Surge protective devices) are being increasingly adopted or adapted by national authorities. In regions like Europe and North America, compliance with these standards is becoming mandatory for new construction and major retrofits. In emerging markets such as India and Southeast Asia, urban development initiatives are driving similar regulatory upgrades. These regulations require SPDs to be installed at multiple levels—service entrance, distribution panels, and critical equipment like elevator controllers—fueling demand for coordinated surge protection solutions tailored to elevator systems.

Rising Incidence of Power Quality Issues

With the proliferation of renewable energy sources, electric vehicle charging stations, and variable frequency drives (VFDs) in buildings, power quality issues such as transient voltages and harmonic distortions are becoming more common. Elevators, which rely heavily on VFDs for motor control, are particularly susceptible to these electrical disturbances. Surge events caused by grid switching, lightning, or internal equipment operation can lead to downtime, costly repairs, or even safety hazards. By 2026, building operators are expected to adopt predictive maintenance strategies that include real-time SPD monitoring, pushing manufacturers to develop intelligent SPDs with diagnostic capabilities and remote alerts.

Growth in High-Rise and Sustainable Buildings

The global construction boom in high-rise residential, commercial, and mixed-use developments is a major catalyst for SPD adoption in elevators. Tall buildings not only require more elevators but are also more exposed to lightning strikes and electromagnetic surges due to their height. Additionally, green building certifications such as LEED and BREEAM encourage the use of reliable, energy-efficient systems—including protected elevator operations—as part of their criteria. Developers are increasingly incorporating SPDs into elevator designs to ensure system longevity and reduce maintenance costs, contributing to the projected compound annual growth rate (CAGR) of 7.2% for the elevator SPD market from 2022 to 2026.

Technological Advancements in SPD Design

By 2026, SPDs for elevators are expected to feature enhanced performance characteristics, including faster response times, higher energy absorption capacities, and modular designs for easy replacement. Innovations such as thermal disconnects, status indicators, and plug-and-play installation are improving safety and reducing downtime. Furthermore, integration with Building Management Systems (BMS) allows for centralized monitoring of SPD health and surge events, enabling proactive maintenance. Leading manufacturers are also focusing on compact, rail-mounted SPDs that fit seamlessly into elevator control cabinets without requiring major redesigns.

Regional Market Dynamics

Regional demand for elevator SPDs varies based on urbanization rates, construction activity, and regulatory environments. North America and Europe are expected to maintain strong market shares due to high building standards and retrofitting activities in aging infrastructure. Meanwhile, the Asia-Pacific region—particularly China, India, and Southeast Asia—is anticipated to experience the fastest growth, driven by rapid urban development and government investments in smart cities. Local manufacturers are beginning to produce cost-effective SPDs compliant with international standards, increasing accessibility and adoption.

Conclusion

By 2026, the market for Surge Protection Devices for elevators will be shaped by technological innovation, regulatory compliance, and the global push toward smarter, safer buildings. As elevators become more digitally integrated and critical to building operations, SPDs will transition from optional components to essential safeguards. Stakeholders—including manufacturers, installers, and building owners—must stay ahead of these trends to ensure reliability, safety, and compliance in the evolving urban landscape.

Common Pitfalls When Sourcing Surge Protection Devices for Elevators

Inadequate Understanding of Elevator Power and Signal Requirements

Elevators often operate on high-power three-phase systems and include sensitive control electronics, position sensors, communication buses, and safety circuits. A common mistake is selecting SPDs designed for general building use without verifying compatibility with elevator-specific voltages, fault currents, and signal protocols (e.g., CAN bus, RS-485). This mismatch can result in ineffective protection or device failure during surge events.

Choosing Incorrect Protection Levels (Voltage Protection Level – Up)

Selecting an SPD with a voltage protection level (Up) that is too high can allow damaging transient voltages to pass through to sensitive elevator control systems. Conversely, an overly low Up may lead to premature SPD wear or nuisance tripping. Failure to match Up to the insulation withstand levels of elevator components (e.g., PLCs, VFDs) risks equipment damage.

Neglecting Coordination Between SPD Stages (Cascading Protection)

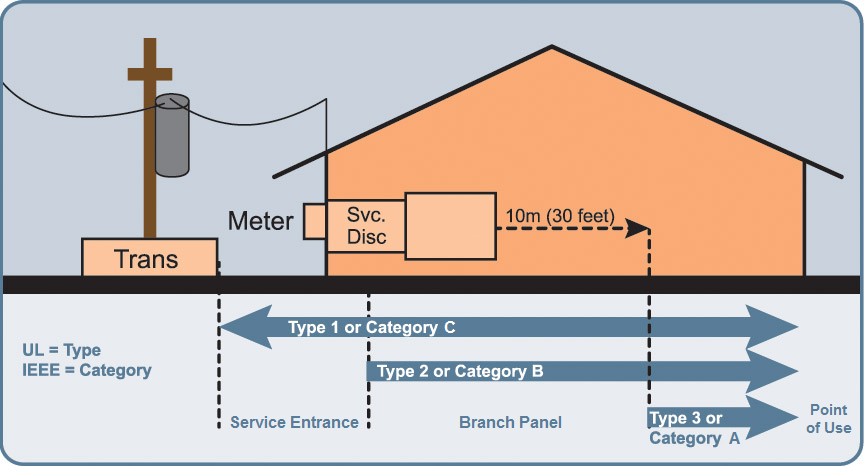

Elevators require coordinated multi-stage surge protection (Type 1 at main supply, Type 2 at distribution, Type 3 near equipment). A common pitfall is installing SPDs without proper energy coordination, leading to one stage absorbing most of the surge and failing prematurely. This leaves downstream elevator electronics exposed during subsequent surges.

Overlooking Environmental and Ingress Protection (IP Rating)

Elevator control panels and machine rooms may be exposed to dust, moisture, or temperature extremes. Sourcing SPDs with insufficient IP ratings (e.g., IP20 instead of IP54) can result in corrosion, short circuits, or reduced lifespan. Installing SPDs in hoistways or wet environments without appropriate enclosures compromises reliability and safety.

Ignoring Certification and Compliance Standards

Using SPDs that lack relevant certifications (e.g., IEC 61643-11, UL 1449) or are not tested for elevator applications can lead to non-compliance with building codes and insurance requirements. Counterfeit or substandard devices may appear cost-effective but often fail under real surge conditions, risking costly downtime and safety hazards.

Poor Installation Practices and Grounding

Even high-quality SPDs fail to protect if improperly installed. Common issues include using undersized grounding conductors, creating long lead lengths that increase impedance, or failing to bond SPDs to a low-impedance ground. In elevators, where ground loops and noise sensitivity are critical, poor grounding renders SPDs ineffective.

Underestimating Signal Line Protection Needs

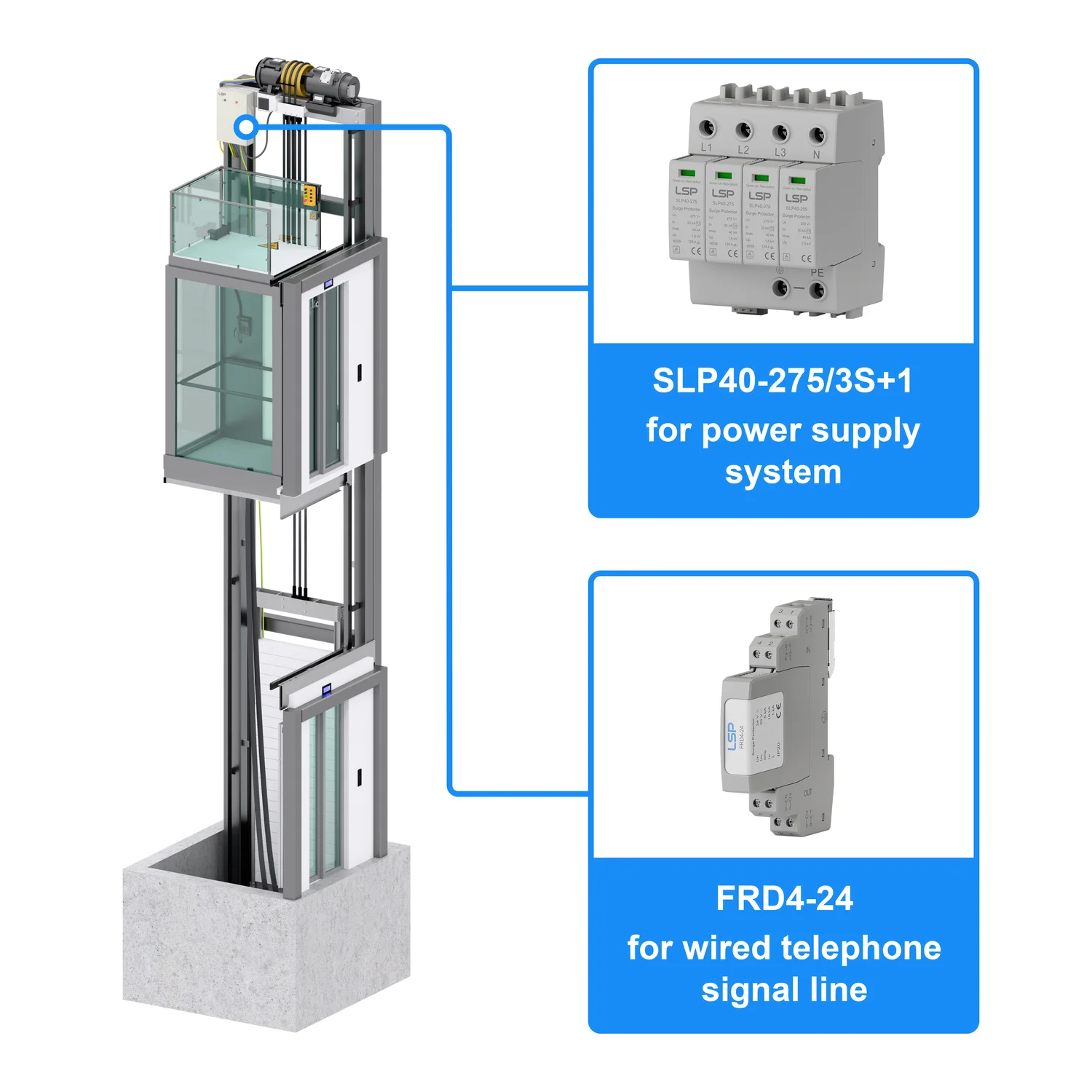

Many sourcing efforts focus only on power line SPDs while neglecting surge protection for data and control lines (e.g., hall call buttons, door operators, position encoders). Unprotected signal lines can introduce surges directly into control boards, bypassing power-side protection and causing erratic elevator behavior or failure.

Failing to Plan for Maintenance and Monitoring

SPDs degrade over time and after absorbing surges. Sourcing devices without remote monitoring capabilities or visual status indicators makes it difficult to detect end-of-life conditions. In elevators, where uptime is crucial, unexpected SPD failure due to lack of maintenance can result in unplanned outages and safety risks.

Logistics & Compliance Guide for Surge Protection Devices for Elevators

This guide outlines key logistics considerations and compliance requirements for the procurement, transportation, installation, and maintenance of Surge Protection Devices (SPDs) specifically designed for elevator systems. Ensuring proper handling and regulatory adherence is critical for safety, system reliability, and legal conformity.

Product Classification and Regulatory Standards

Surge Protection Devices for elevators must comply with international, national, and industry-specific standards to ensure electrical safety and performance. Key standards include:

• IEC 61643-11: Specifies requirements and test methods for low-voltage surge protective devices connected to AC power systems — the primary international standard for SPDs.
• EN 61643-11: European harmonized version of IEC 61643-11, required for CE marking.
• UL 1449 (4th Edition): Standard for safety of surge protective devices in the United States; essential for UL listing.
• EN 81-20 & EN 81-50: Elevator-specific safety standards that reference electromagnetic compatibility (EMC) and overvoltage protection requirements.
• Local Electrical Codes: Such as the National Electrical Code (NEC) in the U.S. (Article 285), Canadian Electrical Code (CEC), or IEC-based national codes, which govern SPD installation practices.

Ensure all SPDs are certified by accredited bodies (e.g., TÜV, UL, CSA) and accompanied by test reports and declarations of conformity.

Packaging and Handling Requirements

SPDs are sensitive electronic components and must be handled with care during transit and storage:

• Original Packaging: Ship and store SPDs in manufacturer-sealed anti-static packaging to prevent electrostatic discharge (ESD) damage.
• Environmental Protection: Avoid exposure to moisture, extreme temperatures (typically -25°C to +70°C during storage), and corrosive atmospheres.
• Fragile Labeling: Clearly mark packages as “Fragile” and “Electrostatic Sensitive Device” to alert logistics personnel.
• Stacking and Weight Limits: Follow manufacturer guidelines for stacking to avoid physical damage.

Transportation and Import/Export Compliance

Transportation of SPDs typically falls under general electronics shipment protocols but requires attention to regulations:

• Dangerous Goods Classification: SPDs are generally not classified as hazardous materials unless they contain restricted components (e.g., certain electrolytic capacitors). Verify with the manufacturer’s Safety Data Sheet (SDS).
• Customs Documentation: For international shipments, provide:
• Commercial invoice with accurate HS (Harmonized System) code — typically 8536.50 (circuit breakers, fuses, surge suppressors).
• Certificate of Conformity (CoC) or test reports (IEC/UL).
• Bill of Lading/Air Waybill.
• RoHS and REACH Compliance: Confirm SPDs comply with EU directives on hazardous substances (RoHS) and chemical registration (REACH). Documentation must be available for customs clearance in regulated regions.

Storage Conditions

Before installation, SPDs should be stored properly to maintain functionality:

• Dry and Clean Environment: Relative humidity below 75%, free from dust and conductive particles.
• Temperature Range: Maintain between +5°C and +40°C for prolonged storage (refer to manufacturer specs).
• Shelf Life: Note expiration dates if applicable; some components degrade over time.

Installation and Site Compliance

Installation must follow both electrical codes and elevator safety standards:

• Qualified Personnel: Only licensed electricians or certified elevator technicians should install SPDs.
• Location: SPDs should be installed close to the elevator control panel or main power entry point to minimize lead length and inductance.
• Wiring and Coordination: Use short, straight conductor paths; coordinate with existing overcurrent protection devices (fuses, breakers) per IEC 60364-4-44 and NEC Article 285.
• Grounding: Ensure low-impedance grounding path in accordance with local grounding standards (e.g., IEEE 142).
• Labeling: Mark installed SPDs with maintenance dates, ratings, and replacement schedules.

Maintenance and End-of-Life Management

SPDs have a finite lifespan and require monitoring:

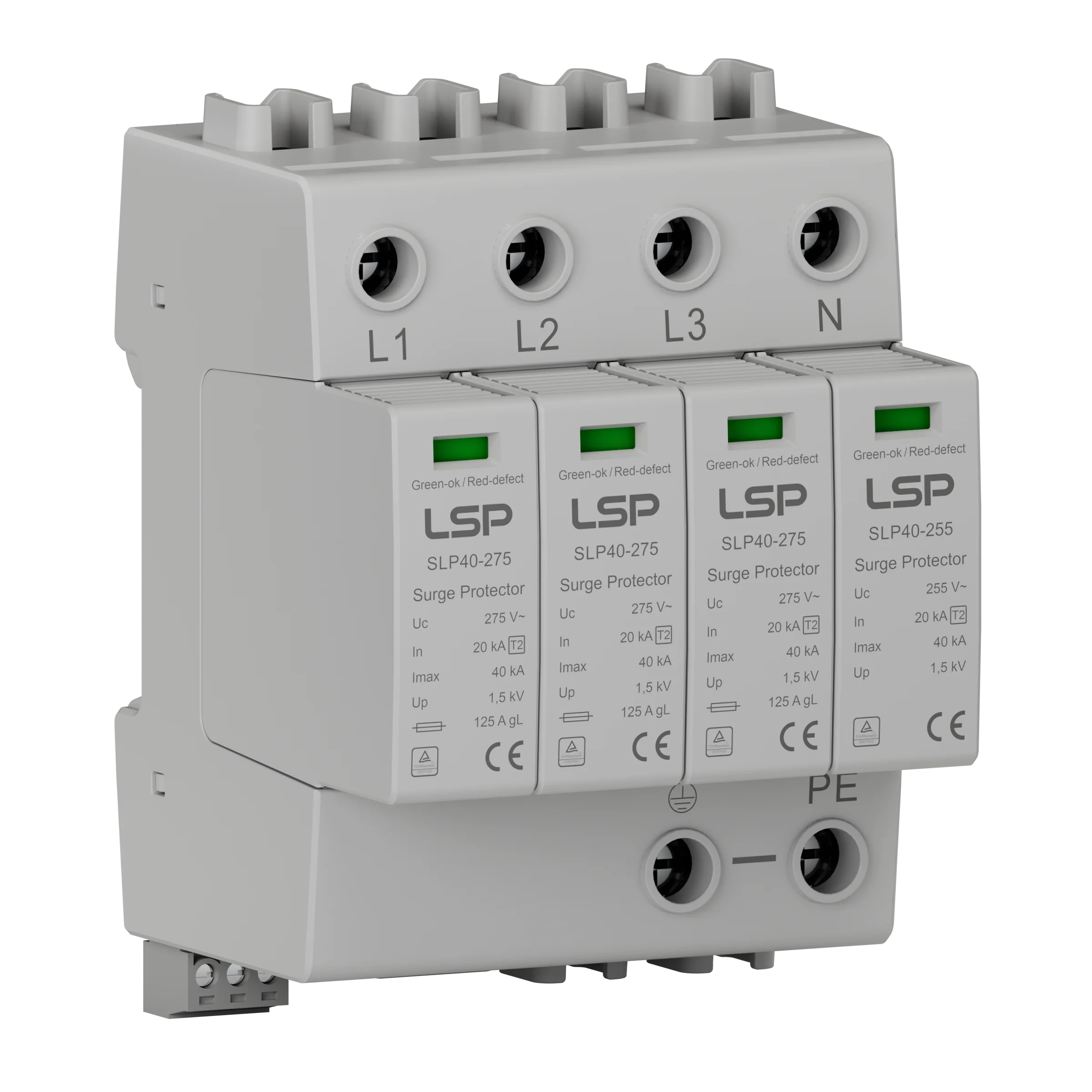

• Visual Inspection: Check status indicators (e.g., green/red window) during routine elevator maintenance.
• Testing: Periodically test SPD performance using manufacturer-recommended methods.
• Replacement: Replace SPDs after a major surge event or when end-of-life is indicated.
• Disposal: Follow WEEE (Waste Electrical and Electronic Equipment) directives in the EU or local e-waste regulations. Do not dispose of in regular trash due to electronic components and potential hazardous materials.

Documentation and Record Keeping

Maintain comprehensive records for compliance audits and traceability:

• Product data sheets and certificates (CE, UL, RoHS).
• Installation reports with photos and timestamps.
• Maintenance logs and replacement history.
• Proof of disposal/recycling.

Adhering to this logistics and compliance guide ensures the reliable operation of elevator systems, protects against electrical surges, and meets all applicable safety and regulatory requirements globally.
