H2: Market Trends for Silicon Wafer Vendors in 2026

As the semiconductor industry continues its rapid evolution, silicon wafer vendors are positioned at the forefront of technological and market transformation in 2026. Several key trends are shaping the landscape, driven by demand from advanced computing, automotive electrification, artificial intelligence (AI), and geopolitical shifts in supply chain dynamics.

1. Rising Demand for Larger and Advanced Wafers
In 2026, the transition toward 300mm (12-inch) wafers remains dominant, with vendors ramping up production capacity to meet sustained demand from logic and memory chipmakers. Investment in 300mm fab expansions—particularly in mature and advanced process nodes (e.g., sub-5nm and 3nm)—is driving wafer consumption. Simultaneously, research into 450mm wafers remains limited due to high capital costs, but vendors are enhancing productivity through automation and yield optimization on existing platforms.

2. Supply Chain Resilience and Regionalization

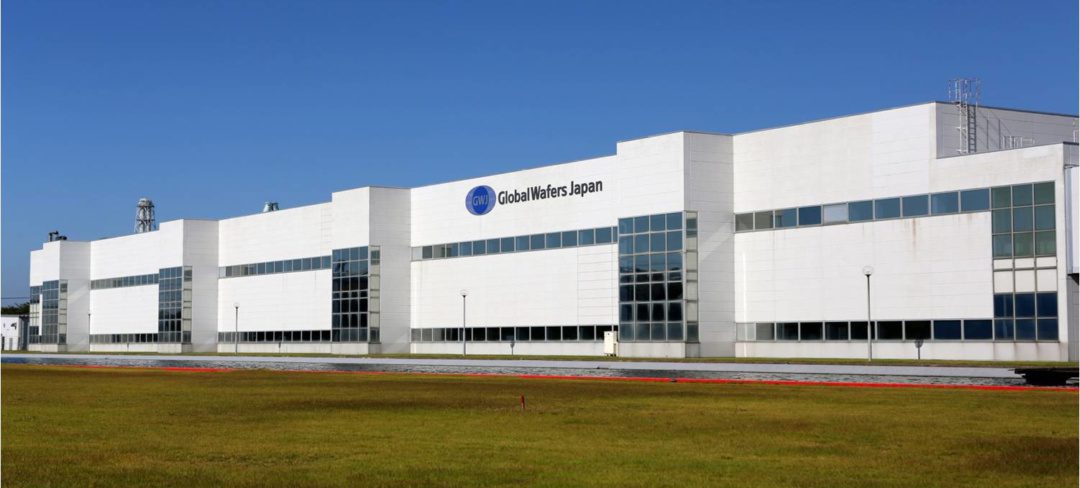

Geopolitical tensions and export controls—especially between the U.S., China, and Taiwan—are prompting silicon wafer vendors to diversify manufacturing footprints. In 2026, vendors like Shin-Etsu Chemical, SUMCO, and GlobalWafers are expanding production in Japan, South Korea, the U.S., and Southeast Asia to mitigate risks. Government incentives, such as the U.S. CHIPS Act and EU Chips Act, are accelerating local supply chain development, enabling wafer suppliers to establish regional hubs closer to end customers.

3. Growth in Specialty Wafers for Power and Sensor Applications
Beyond standard silicon wafers, demand for specialty substrates—such as silicon-on-insulator (SOI), epitaxial (EPI) wafers, and high-resistivity silicon—is growing. These are critical for power semiconductors (e.g., in EVs and renewable energy), RF devices, and image sensors. Vendors are increasing R&D to improve performance and reduce defects in these niche segments, which offer higher margins than standard polished wafers.

4. Sustainability and Environmental Pressures
Environmental, social, and governance (ESG) considerations are becoming central to vendor operations. In 2026, silicon wafer producers are investing in water recycling, reduced chemical usage, and energy-efficient manufacturing processes. Customers, especially large OEMs and foundries, are demanding greener supply chains, pushing vendors to adopt carbon-neutral initiatives and obtain sustainability certifications.

5. Price Pressures and Capacity Constraints
Despite high demand, 2026 sees mixed pricing dynamics. While advanced-node wafer prices remain stable or slightly elevated due to tight capacity, oversupply concerns in mature nodes (e.g., 200mm wafers) are leading to margin compression. Vendors are balancing capacity investments with long-term supply agreements (LTAs) to secure stable revenue, especially with IDMs and foundries like TSMC and Samsung.

6. Technological Innovations and Integration with Advanced Packaging
As chip design moves toward chiplets and heterogeneous integration, silicon wafers are increasingly used as interposers in advanced packaging (e.g., CoWoS, Foveros). This trend is creating new demand for ultra-thin and defect-free wafers, pushing vendors to innovate in grinding, polishing, and metrology technologies.

Conclusion
In 2026, silicon wafer vendors are navigating a complex environment characterized by technological advancement, supply chain reconfiguration, and sustainability imperatives. Leadership in innovation, geographic diversification, and customer collaboration will differentiate top performers in this critical segment of the semiconductor ecosystem.

Common Pitfalls Sourcing Silicon Wafer Vendors (Quality, IP)

Quality Inconsistencies and Specifications Mismatch

One of the most frequent pitfalls when sourcing silicon wafers is receiving wafers that do not meet the required quality standards or technical specifications. Vendors may provide materials with inconsistent doping levels, surface roughness, crystal orientation deviations, or particle contamination. These discrepancies can lead to yield loss and reliability issues during device fabrication. Buyers often assume standard specifications are uniformly adhered to across suppliers, but variations in manufacturing processes—especially among cost-focused or less-established vendors—can result in non-compliance. Thorough qualification testing and clear, detailed specifications in procurement contracts are essential to mitigate this risk.

Inadequate or Unverified Quality Control Processes

Some silicon wafer vendors, particularly those outside major semiconductor manufacturing regions, may lack robust quality assurance systems such as ISO certifications or statistical process control (SPC). Without third-party audits or on-site assessments, buyers may unknowingly source from vendors whose production lines drift out of specification over time. Relying solely on vendor-provided certificates of conformance (CoC) without independent verification increases the risk of integrating substandard wafers into high-precision applications.

Intellectual Property (IP) Leakage and Reverse Engineering Risks

Silicon wafers themselves may not carry IP, but the sourcing process can expose sensitive information about a company’s technology roadmap, design requirements, or fabrication processes. Sharing detailed wafer specifications—such as resistivity gradients, epitaxial layer structures, or custom doping profiles—can inadvertently disclose proprietary information to vendors, especially if non-disclosure agreements (NDAs) are weak or unenforced. In regions with less stringent IP protection laws, there is a heightened risk of data misuse or reverse engineering by the vendor or their affiliates.

Dual-Use Supplier Relationships and Supply Chain Conflicts

Many silicon wafer vendors supply multiple customers across competitive industries. Sourcing from a vendor that also serves direct competitors raises the risk of unintentional IP exposure or preferential treatment. Additionally, vendors may repurpose rejected or surplus wafers from one customer and resell them under different grades—a practice known as “wafer recycling”—which can introduce counterfeit or downgraded materials into the supply chain if not properly monitored.

Lack of Traceability and Material Genealogy

High-reliability applications (e.g., aerospace, medical, automotive) require full traceability of raw materials. However, some vendors do not maintain detailed batch records or origin data for their polysilicon feedstock, making it difficult to ensure compliance with regulatory or ethical sourcing standards. This lack of transparency can result in supply chain disruptions or reputational damage, particularly if materials are linked to restricted regions or unsustainable practices.

Overlooking Long-Term Supply Stability and Scalability

Startups and smaller firms often prioritize initial cost savings over vendor scalability and financial stability. Selecting a vendor without assessing their long-term production capacity or raw material sourcing strategy can lead to supply shortages during demand spikes. Additionally, reliance on single-source suppliers without contingency plans increases vulnerability to geopolitical disruptions, natural disasters, or export controls.

Mitigation Strategies

To avoid these pitfalls, buyers should:
– Conduct rigorous technical and commercial due diligence on potential vendors.
– Require comprehensive quality documentation and perform independent wafer sampling and testing.
– Enforce strong NDAs and limit the disclosure of sensitive technical details.
– Audit vendor facilities and supply chain practices, especially for high-stakes applications.
– Diversify suppliers and negotiate long-term agreements with volume flexibility.
– Implement traceability systems and insist on full material disclosure.

Proactive management of both quality and IP risks is critical to ensuring a reliable, secure, and compliant silicon wafer supply chain.

Logistics & Compliance Guide for Silicon Wafer Vendors

This guide outlines key logistics and compliance considerations for vendors shipping silicon wafers to ensure safe, timely, and regulation-compliant delivery.

Packaging and Handling Requirements

Silicon wafers are highly sensitive to contamination, breakage, and electrostatic discharge (ESD). Vendors must use industry-standard packaging, including vacuum-sealed containers, ESD-safe materials, and rigid protective carriers. Wafers should be stored and transported in cleanroom-compatible packaging (e.g., FOUPs or SMIF pods) to prevent particle contamination. All packaging must be labeled with handling instructions, including “Fragile,” “This Side Up,” and ESD warnings.

Transportation and Shipment Protocols

Shipments must maintain a controlled environment. Temperature and humidity should be monitored and recorded, especially for long-distance or international transit. Use of climate-controlled, non-vibrating transport is recommended. Real-time tracking and tamper-evident seals are required for high-value or critical shipments. Vendors must coordinate logistics with carriers experienced in semiconductor material transport and ensure delivery windows align with the recipient’s fab scheduling.

Regulatory Compliance and Documentation

Vendors must comply with international and regional regulations, including:
– ITAR/EAR (U.S. Export Controls): Verify if wafers or associated technologies are subject to export restrictions based on specifications (e.g., diameter, doping, resistivity). Obtain necessary licenses for exports outside permitted destinations.
– REACH and RoHS (EU Regulations): Provide declarations confirming wafers are free from restricted substances.
– Customs Documentation: Submit accurate commercial invoices, packing lists, and certificates of origin. Include Harmonized System (HS) codes specific to semiconductor materials (e.g., 3818.00 for silicon wafers).
– Dangerous Goods (if applicable): Certain coated or chemically treated wafers may require classification under IATA/IMDG regulations.

Quality Assurance and Traceability

Each shipment must include a Certificate of Conformance (CoC) detailing wafer specifications (diameter, orientation, thickness, resistivity, etc.) and batch/lot numbers. Full traceability from production to delivery is required. Implement quality management systems compliant with ISO 9001 and, where applicable, ISO 14001 or IATF 16949.

Incident Reporting and Non-Conformance

Vendors must have a process to report and address shipment damage, delays, or compliance lapses immediately. Any non-conforming product must be quarantined, investigated, and corrected per root cause analysis. Corrective action plans should be shared with the customer upon request.

Sustainability and Environmental Responsibility

Minimize packaging waste and use recyclable materials where possible. Comply with local and international environmental regulations for waste disposal, especially for used carriers or protective materials. Provide environmental data on request, including carbon footprint metrics for logistics operations.

By adhering to this guide, silicon wafer vendors ensure reliable supply chain performance, regulatory adherence, and continued partnership with semiconductor manufacturers.
