H2: Market Trends in the Silicon Wafer Industry for 2026

As the semiconductor industry continues to evolve, the silicon wafer market is poised for significant transformation by 2026. Driven by increasing demand for advanced electronics, emerging technologies, and strategic shifts in global manufacturing, several key trends are shaping the trajectory of the silicon wafer market in the second half (H2) of 2026.

1. Growing Demand for Larger Wafer Diameters

The industry is witnessing a steady shift toward larger wafer sizes, particularly 300mm (12-inch) wafers, which dominate production capacity. By H2 2026, the utilization rate of 300mm wafers is projected to exceed 90%, driven by cost efficiency and higher yield per wafer. Investment in 450mm wafer infrastructure remains limited due to high capital costs, but R&D continues in select regions like South Korea and Japan, positioning the industry for a potential long-term transition.

2. Expansion of Specialty Wafers for Advanced Applications

Demand for specialty silicon wafers—such as epitaxial (Epi), silicon-on-insulator (SOI), and high-resistivity wafers—is rising sharply. These wafers are critical for power devices, RF applications, automotive electronics, and 5G infrastructure. In H2 2026, specialty wafers are expected to account for over 35% of total silicon wafer revenue, up from 28% in 2023, reflecting the growing complexity of semiconductor designs.

3. Geopolitical Realignment and Regionalization of Supply Chains

Ongoing U.S.-China tech tensions and efforts to bolster domestic semiconductor production are reshaping the silicon wafer landscape. The U.S. CHIPS and Science Act and similar initiatives in Europe and India are accelerating the construction of new fab facilities and wafer production plants. In H2 2026, North America and Europe are expected to capture a combined 25% of global silicon wafer demand, up from 18% in 2022, reducing reliance on East Asian suppliers.

4. Sustainability and Green Manufacturing Initiatives

Environmental concerns are pushing wafer manufacturers to adopt greener practices. By H2 2026, leading wafer producers like Shin-Etsu, SUMCO, and GlobalWafers are expected to have implemented carbon-neutral production targets, water recycling systems, and energy-efficient crystal growth technologies. Regulatory pressure in the EU and North America is driving investment in sustainable wafer manufacturing, influencing procurement decisions among major semiconductor firms.

5. AI and High-Performance Computing Driving Demand

The explosive growth of artificial intelligence (AI), data centers, and high-performance computing (HPC) is fueling demand for advanced logic chips, which require premium-grade silicon wafers. In H2 2026, AI-related semiconductor demand is projected to contribute to a 12–15% year-over-year increase in 300mm wafer consumption, particularly for EUV-patterned devices requiring ultra-flat, defect-free substrates.

6. Pricing Pressure and Capacity Constraints

Despite rising demand, the silicon wafer market faces supply tightness due to lead times for new capacity expansion (typically 18–24 months). In H2 2026, wafer prices are expected to remain elevated, especially for 300mm and specialty types, as top-tier suppliers operate near full capacity. However, increased competition from Chinese wafer producers like NCX and Simgui may moderate price growth in certain segments.

7. Increased M&A and Vertical Integration

To secure supply and reduce dependency, major semiconductor companies are pursuing vertical integration or strategic partnerships with wafer suppliers. Mergers and acquisitions in the wafer sector are expected to accelerate in H2 2026, with potential consolidations in Europe and Japan. Additionally, foundries like TSMC and Samsung are deepening collaborations with wafer providers to ensure priority allocation.

---

Conclusion:
In H2 2026, the silicon wafer market will be defined by technological advancement, supply chain resilience, and sustainability. While demand remains robust across automotive, AI, and consumer electronics, the industry must navigate capacity constraints and geopolitical complexity. Companies that invest in innovation, regional diversification, and eco-efficient manufacturing are best positioned to lead in the evolving semiconductor ecosystem.

Common Pitfalls When Sourcing Silicon Wafers: Quality and Intellectual Property Risks

Sourcing silicon wafers is a critical step in semiconductor manufacturing, research, and development. However, organizations often encounter significant challenges related to quality assurance and intellectual property (IP) protection. Overlooking these aspects can lead to production delays, yield loss, legal disputes, and reputational damage.

Quality-Related Pitfalls

Inadequate Specification Alignment
One of the most frequent issues arises when the wafer specifications provided by the supplier do not fully align with the buyer’s process requirements. Differences in parameters such as resistivity, crystal orientation (e.g., <100> vs. <111>), dopant type (n-type or p-type), thickness tolerance, or surface finish can severely impact device performance. Failure to define and validate these specifications upfront can result in wafers that are incompatible with downstream fabrication processes.

Insufficient Quality Control and Certification
Relying on suppliers without robust quality management systems—such as ISO 9001 certification or adherence to SEMI standards—increases the risk of receiving substandard wafers. Lack of comprehensive batch traceability, inconsistent metrology data, or inadequate defect reporting (e.g., particles, COPs, or slip lines) can compromise process yield. Buyers must verify that suppliers conduct rigorous in-line and final inspections and provide full material test reports (MTRs).

Use of Recycled or Reclaimed Wafers Without Disclosure
Some cost-driven suppliers may offer reclaimed or recycled wafers that have been polished or reprocessed. While acceptable for certain R&D applications, these wafers often have compromised structural integrity, altered surface properties, or residual contamination. If not clearly labeled or disclosed, their use in production can lead to unpredictable failures. Buyers must explicitly specify whether virgin or reclaimed wafers are acceptable.

Intellectual Property-Related Pitfalls

Lack of IP Ownership Clarity in Custom Wafers
When sourcing custom-engineered wafers (e.g., SOI, epitaxial, or patterned substrates), ambiguity around IP ownership can arise. If a buyer provides proprietary designs or process parameters to a foundry or wafer supplier, there may be disputes over who owns the resulting process improvements, tooling, or design data. Without a clear contractual agreement, the supplier could reuse or license the IP to competitors.

Insufficient IP Protection in Supply Agreements
Many sourcing contracts fail to include robust IP clauses, such as confidentiality obligations, restrictions on reverse engineering, or limitations on supplier data usage. This exposes the buyer to potential IP leakage, especially when working with offshore manufacturers. It is essential to implement strong non-disclosure agreements (NDAs) and ensure contracts explicitly assign IP rights to the buyer for custom developments.

Third-Party IP Infringement Risks
Suppliers may unknowingly (or negligently) use manufacturing processes or materials that infringe on third-party patents. If the sourced wafers incorporate such technologies, the end-user could face legal liability for patent infringement, even if unaware. Conducting due diligence on the supplier’s IP clearance practices and requiring IP warranties in contracts can mitigate this risk.

By proactively addressing these quality and IP pitfalls through detailed specifications, rigorous supplier vetting, and comprehensive legal agreements, organizations can secure reliable silicon wafer supply chains while protecting their technological investments.

Logistics & Compliance Guide for Silicon Wafers

Silicon wafers are critical components in semiconductor manufacturing, requiring specialized handling, precise logistics, and strict regulatory compliance due to their fragility, high value, and potential classification under export control regimes. This guide outlines key considerations for the safe and compliant transportation and handling of silicon wafers.

Handling and Packaging

Silicon wafers are extremely fragile and sensitive to contamination, electrostatic discharge (ESD), and mechanical stress. Proper packaging is essential to prevent breakage, scratching, and particle contamination during transit.

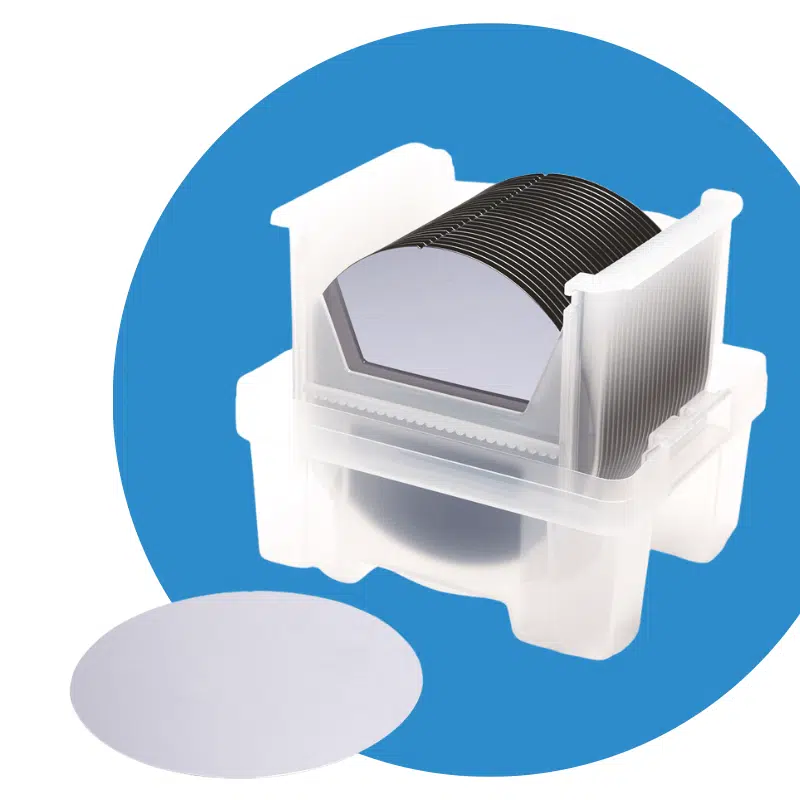

• Primary Packaging: Wafers must be stored in clean, anti-static cassettes (FOUPs – Front Opening Unified Pods or SMIF pods) that maintain a controlled environment. These containers protect against physical contact and airborne particles.
• Secondary Packaging: FOUPs should be secured within shock-absorbent, rigid outer packaging (e.g., custom molded foam in corrugated boxes or reusable transit cases). The packaging must prevent movement and absorb vibrations.
• Cleanroom Compatibility: All packaging materials must be cleanroom-compatible and free of outgassing chemicals that could contaminate wafers.
• Labeling: Packages must be clearly labeled with “Fragile,” “This Side Up,” “Static Sensitive,” and any relevant internal handling instructions.

Transportation Requirements

Transporting silicon wafers—whether domestically or internationally—demands climate control, secure handling, and protection against environmental hazards.

• Temperature and Humidity Control: Maintain stable temperature (typically 15–25°C) and humidity (30–60% RH) to prevent condensation or warping. Use climate-controlled vehicles or air freight with environmental monitoring.
• Vibration and Shock Mitigation: Utilize transport methods with minimal vibration. Equip vehicles with suspension systems and monitor shock levels using data loggers when necessary.
• Air vs. Ground Transit: Air freight is preferred for long-distance or time-sensitive shipments due to faster transit times and reduced handling. Use cargo aircraft with climate control and secure storage.
• Chain of Custody: Implement tracking systems (e.g., GPS, RFID) to monitor location and environmental conditions throughout transit. Require signed delivery confirmations.

Export Controls and Regulatory Compliance

Silicon wafers, particularly those used in advanced semiconductor applications, may be subject to export control regulations due to their dual-use potential (civilian and military applications).

• Export Classification:
• Determine the appropriate Export Control Classification Number (ECCN) under the U.S. Commerce Control List (CCL) or equivalent (e.g., EU Dual-Use Regulation).
• Most silicon wafers fall under ECCN 3A001, which covers “electronic assemblies, electronic components, and related equipment” with specific performance criteria.
• Licensing Requirements:
• Check if export licenses are required based on destination country, end-user, and end-use.
• Countries under embargo or with advanced semiconductor development programs (e.g., China, Russia, Iran) may require a license or be subject to restrictions.
• Utilize the Automated Export System (AES) for filing Electronic Export Information (EEI) when required.
• Denied Party Screening: Conduct regular screenings against government lists (e.g., BIS Denied Persons List, OFAC SDN List) prior to shipment.
• Documentation:
• Commercial invoice with detailed specifications (diameter, thickness, doping type, resistivity).
• Packing list.
• Certificate of Origin.
• Export license (if applicable).
• Technical data agreements, if transferring controlled information.

Import Regulations

Importing silicon wafers may also trigger customs scrutiny, especially in countries with strict technology import policies.

• Customs Classification: Assign correct HS (Harmonized System) codes (e.g., 8541.40 for wafers used in semiconductor devices).
• Duties and Taxes: Determine applicable import duties, VAT, or other fees. Leverage free trade agreements where possible.
• Local Compliance: Comply with local environmental, safety, and product standards (e.g., REACH, RoHS in the EU), even if wafers are intermediate goods.

Insurance and Risk Management

Given the high value of silicon wafers, comprehensive insurance is essential.

• All-Risk Cargo Insurance: Cover loss, damage, or theft during transit.
• Contingency Planning: Establish protocols for delays, customs holds, or damage incidents, including replacement procedures and root cause analysis.

Best Practices Summary

• Use certified logistics partners experienced in high-tech shipments.
• Train personnel in ESD-safe handling and contamination control.
• Maintain full documentation for audits and compliance verification.
• Regularly update compliance procedures in response to regulatory changes (e.g., BIS updates on semiconductor export rules).

Adhering to this guide ensures the secure, efficient, and legally compliant movement of silicon wafers across global supply chains.
