H2: 2026 Market Trends for Chain Link Fence Post Dimensions

As the construction and infrastructure sectors evolve in response to technological advancements, sustainability demands, and shifting consumer preferences, the market for chain link fence posts is expected to witness notable changes by 2026. A key aspect of this transformation lies in the standardization, customization, and material efficiency of chain link fence post dimensions. Below is an analysis of the anticipated market trends specifically related to post dimensions.

1. Standardization with Regional Adaptations
By 2026, while standard dimensions (such as 2 3/8”, 2 5/8”, and 3” outside diameter posts with lengths ranging from 6 to 12 feet) will remain dominant, there will be a growing trend toward region-specific adaptations. These variations will be driven by local building codes, environmental conditions (e.g., high wind zones or corrosive coastal areas), and security requirements. For example, taller posts (10–12 feet) with increased wall thickness may see higher demand in commercial and industrial applications in regions prone to extreme weather.

2. Increased Demand for Customizable Post Lengths and Gauges
The rise of smart construction planning and modular building techniques is pushing manufacturers to offer more customizable post dimensions. Contractors and developers are increasingly seeking posts with tailored lengths and gauges (e.g., 1 5/8” to 3” OD, 12- to 17-gauge wall thickness) to match specific project needs. This trend is particularly evident in urban infrastructure, where space constraints and design requirements demand precision.

3. Shift Toward Lightweight Yet Durable Profiles
Market demand is steering innovation toward posts that balance strength and material efficiency. By 2026, expect wider adoption of high-strength, lightweight steel alloys and optimized post geometries (e.g., slightly tapered or reinforced mid-sections) that maintain structural integrity while reducing material use. This not only lowers transportation and installation costs but also supports sustainability goals.

4. Integration with Smart Fencing Systems
As smart perimeter security becomes more prevalent, chain link fence posts are being designed to accommodate integrated technologies such as sensors, cameras, and access control systems. This requires posts with specific internal or external channels, slightly larger diameters (e.g., 3” OD becoming more common), and uniform dimensional tolerances to ensure compatibility with electronic components.

5. Sustainability-Driven Dimensional Efficiency
Environmental regulations and green building certifications (like LEED) are influencing post design. Manufacturers are optimizing post wall thickness and length to minimize steel consumption without compromising performance. This leads to a trend toward “right-sizing” — using the minimal effective dimensions for a given application — which reduces carbon footprint and raw material waste.

6. Growth in Pre-Galvanized and Composite Post Alternatives
While traditional steel posts will dominate, alternative materials like fiberglass-reinforced polymer (FRP) are gaining traction, especially in corrosive environments. These composite posts often come in non-standard dimensions tailored to their unique strength profiles, potentially expanding the range of available sizes in the market by 2026.

Conclusion
By 2026, the market for chain link fence post dimensions will reflect a balance between standardization for cost-efficiency and customization for performance and integration needs. Innovations in materials, regional regulatory compliance, and smart infrastructure demands will shape dimensional trends, favoring adaptable, durable, and sustainable designs. Manufacturers who anticipate these shifts and offer flexible, code-compliant post solutions will likely lead the market.

Common Pitfalls When Sourcing Chain Link Fence Post Dimensions (Quality, IP)

When sourcing chain link fence posts, overlooking critical aspects related to dimensions, material quality, and Intellectual Property (IP) considerations can lead to project delays, cost overruns, and compliance issues. Below are the most common pitfalls to avoid:

1. Inconsistent Post Dimensions and Tolerances

One of the most frequent issues is assuming standardization across suppliers. Not all manufacturers adhere to the same dimensional tolerances. For example, a post specified as 2-3/8” in diameter may vary slightly between vendors. These inconsistencies can affect installation, gate alignment, and long-term structural integrity. Always verify exact dimensions and request certified mill test reports.

2. Compromising on Material Quality

To reduce costs, some buyers opt for lower-grade steel or insufficient galvanization. This can result in premature rusting, warping, or post failure—especially in corrosive environments. Ensure posts meet ASTM A123 or equivalent standards for zinc coating and ASTM A500 Grade B for structural steel. Avoid posts with uneven or thin galvanization.

3. Ignoring Post Wall Thickness (Gauge)

The wall thickness (measured in gauge or inches) directly impacts durability. A common mistake is selecting undersized posts for height or wind load requirements. For instance, using a 1.65 mm (14-gauge) post for a 10-foot fence may lead to bending. Always match post thickness to fence height and local weather conditions.

Recommended Minimum Wall Thickness:

– 4–6 ft fences: 1.65 mm (14 gauge)
– 7–10 ft fences: 1.98–2.31 mm (12–11 gauge)

4. Overlooking Intellectual Property (IP) in Design or Branding

Some suppliers may offer “branded” or patented fence systems (e.g., specific crimping patterns, twist-lock mechanisms, or coatings). Unauthorized use or replication of these designs can lead to IP infringement claims. Always verify whether the product design is proprietary and confirm licensing if applicable.

5. Failing to Match Posts with Accessories

Mismatched post dimensions can render caps, bands, tension bars, and rail adapters incompatible. For example, a 2-3/8” OD post won’t fit a 2-1/2” sleeve. Double-check compatibility with all ancillary components before bulk ordering.

6. Not Accounting for Installation Environment

Posts must be selected based on soil type, moisture levels, and exposure. Using standard galvanized posts in coastal areas without additional protection (e.g., powder coating or vinyl coating) shortens lifespan. Consider environmental factors when specifying dimensions and protection levels.

7. Skipping Third-Party Quality Inspections

Relying solely on supplier claims without third-party verification can result in substandard materials. Conduct random sampling and inspection for dimensional accuracy, coating thickness, and straightness—especially when sourcing from overseas suppliers.

8. Assuming All “Schedule 40” Posts Are Equal

While Schedule 40 steel pipe is commonly used, it’s not a universal standard for fence posts. True fence posts are often manufactured to specific agricultural or structural specs, not plumbing standards. Confirm the post is designed for fencing applications.

By addressing these pitfalls early in the sourcing process, buyers can ensure durable, compliant, and cost-effective chain link fence installations. Always request detailed product specifications, certifications, and samples before finalizing procurement.

Logistics & Compliance Guide for Chain Link Fence Post Dimensions

When planning, transporting, installing, or inspecting chain link fence systems, understanding standard post dimensions and the associated logistics and compliance requirements is essential. This guide outlines key considerations related to dimensions, transportation, handling, and regulatory compliance.

Standard Chain Link Fence Post Dimensions

Chain link fence posts typically come in specific lengths, diameters, and wall thicknesses depending on application and regional standards. Common dimensions include:

• Diameter: 1.66″, 1.90″, 2.375″, and 2.875″ (most common are 1.66″ and 2.375″ for residential and commercial use)
• Wall Thickness: 0.065″, 0.095″, 0.120″, and 0.134″ (gauge ranges from 14 to 18)
• Length: 6′, 7′, 8′, 10′, and 12′ (above-ground height typically 5–6 feet; total length includes 1–2 feet buried)

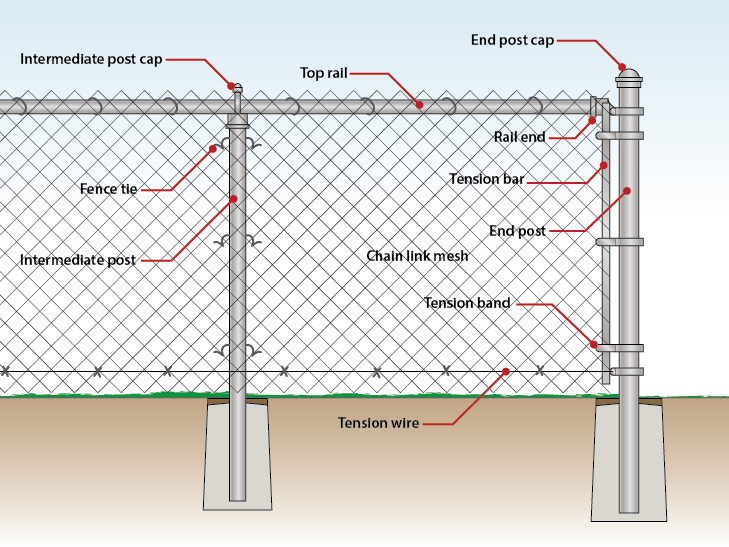

• Top Rail (for top tension): 1″ to 1.5″ diameter, usually attached to terminal posts

Posts are commonly made from galvanized steel and may have additional powder coating or vinyl coating for corrosion resistance.

Transportation and Handling Logistics

Proper logistics planning ensures posts arrive undamaged and ready for installation:

• Load Securing: Posts must be banded, crated, or bundled to prevent movement during transit. Use edge protectors to avoid coating damage.
• Truck Capacity: Standard flatbed or stake-bed trucks can carry 200–500 linear feet of posts per load, depending on diameter and length.
• Weight Considerations: A 10-foot 2.375″ OD post weighs ~18 lbs. Calculate total load weight to comply with DOT weight limits.
• Storage On-Site: Store posts off the ground on wooden skids, covered to prevent moisture accumulation and galvanic corrosion.
• Handling Equipment: Use forklifts or cranes with padded forks to avoid denting or scratching galvanized surfaces.

Installation and Depth Compliance

Correct installation depth and alignment are critical for structural integrity and code compliance:

• Set Depth: Typically 1/3 to 1/2 of total post length (e.g., 2–3 feet for an 8-foot post), depending on local building codes and frost line depth.
• Concrete Encasement: Required for terminal and corner posts; line posts may use backfill or concrete depending on wind load and soil conditions.

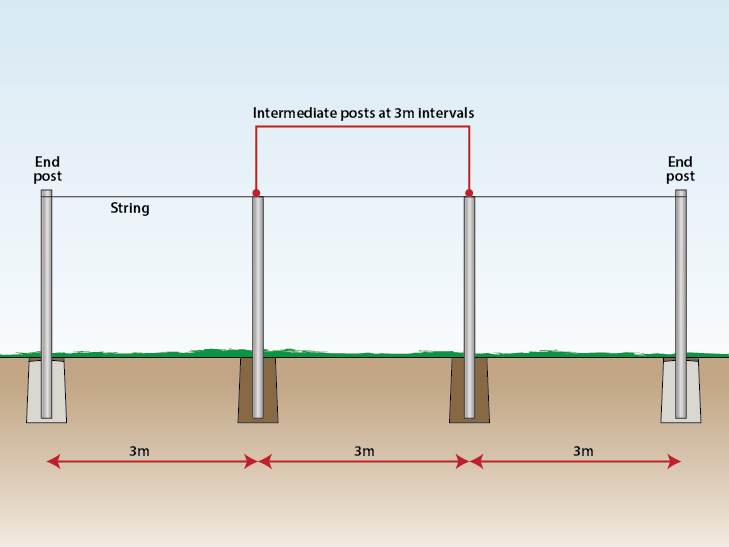

• Spacing: Line posts usually spaced 10′ apart; terminal posts at corners, ends, and gates.
• Plumb and Alignment: Posts must be vertically plumb and horizontally aligned to ensure proper fence tension and appearance.

Regulatory and Safety Compliance

Chain link fence installations must meet various codes and standards:

• Building Codes: Local and state codes (e.g., International Building Code – IBC) dictate post size, spacing, embedment depth, and wind load requirements.
• ADA Compliance: For public areas, ensure fence design (especially gates) complies with ADA standards for accessibility.
• Safety Standards: ASTM A123 (zinc coating), ASTM F589 (fence performance), and OSHA regulations for worker safety during installation.
• Zoning and Setback Rules: Verify property line setbacks and height restrictions—typically 6 feet max for residential, higher for commercial with permits.
• Inspection Requirements: Many jurisdictions require inspection after post setting but before fabric installation.

Environmental and Corrosion Resistance

Galvanized posts must meet minimum coating standards to ensure longevity:

• ASTM A123 Compliance: Minimum 1.8 oz/ft² zinc coating for corrosion resistance.
• Coating Options: Consider hot-dip galvanizing plus powder coating (dual protection) in coastal or high-moisture areas.
• Environmental Regulations: Proper disposal of scrap metal and containment of galvanized runoff during cutting or grinding (zinc fumes are hazardous).

Documentation and Traceability

For commercial and municipal projects, maintain compliance documentation:

• Mill Test Reports (MTRs): Confirm steel grade and galvanizing specs.
• Installation Logs: Record post placement, depth, concrete use, and inspection sign-offs.
• Permitting: Secure necessary permits before installation, especially for boundary, pool, or security fencing.

By adhering to standardized dimensions and following logistical and compliance best practices, contractors and project managers can ensure durable, safe, and code-compliant chain link fence installations. Always consult local authorities and engineering specifications for project-specific requirements.
